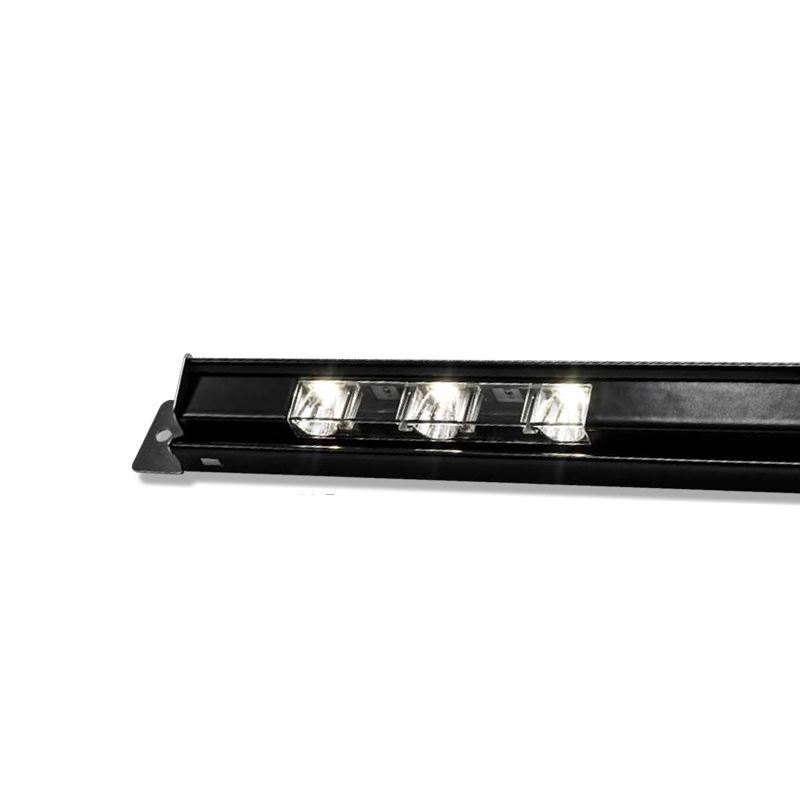

Optimax OP45 Radiant LED 3500K - 36" - Left End Assembly

SKU: 60-22944-49336

Optimax OP45 Radiant LED
36" long with a standard output of 3500K and a CRI of 90.
Designed for application with the left end of case's door panels.

Fixture Specifications:
• Voltage, 24VDC
• CCT, 3500K/4000K
• L70 life, 100,000 Hours
• Uniformity, 1.1:1
• LUX: OP30 (1250), OP45 (1400), OP55 (1250)
- Avg Lux measured at 4” (OP30, OP45) and at
10” (OP55) from frame at door centerline

Driver Specifications:
• UL Class 2 Low Voltage
• Input 120-277VAC, 50/60 Hz
• Output, 24VDC, 100w Max
